FFTECH Unveils Zero‑Capacity‑Expansion Storage‑Charging Unit for Ultra‑Fast EV Charging

With the rapid surge of the new‑energy vehicle (NEV) industry, 800V high‑voltage fast‑charging technology is being widely adopted at speed. Today, pulling away fully charged over a cup of coffee is no longer just a marketing slogan—it is becoming a reality. Yet, as a growing number of vehicles demand ultra‑fast charging at 480kW or even higher power, a hidden bottleneck is becoming increasingly apparent: the traditional power grid around us is struggling to keep up.

In many older urban districts, high‑density commercial and office clusters, and highway service areas, the existing distribution transformer capacity is already stretched to its limit. Applying to the grid for capacity increase, namely expanding distribution capacity, just to install a few ultra‑fast charging piles means facing lengthy approval cycles, high construction costs, and—in many locations—the hard reality that no spare grid capacity is available to allocate at all.

Against this backdrop, a remarkably smart solution has emerged: the zero‑capacity‑expansion integrated storage‑charging unit. Like a master of Tai Chi, it uses the clever transformation of a reservoir to deliver a massive 480kW of ultra‑fast charging with only 125kW of grid distribution capacity. Today, let us take a deep dive into this new species in the charging field.

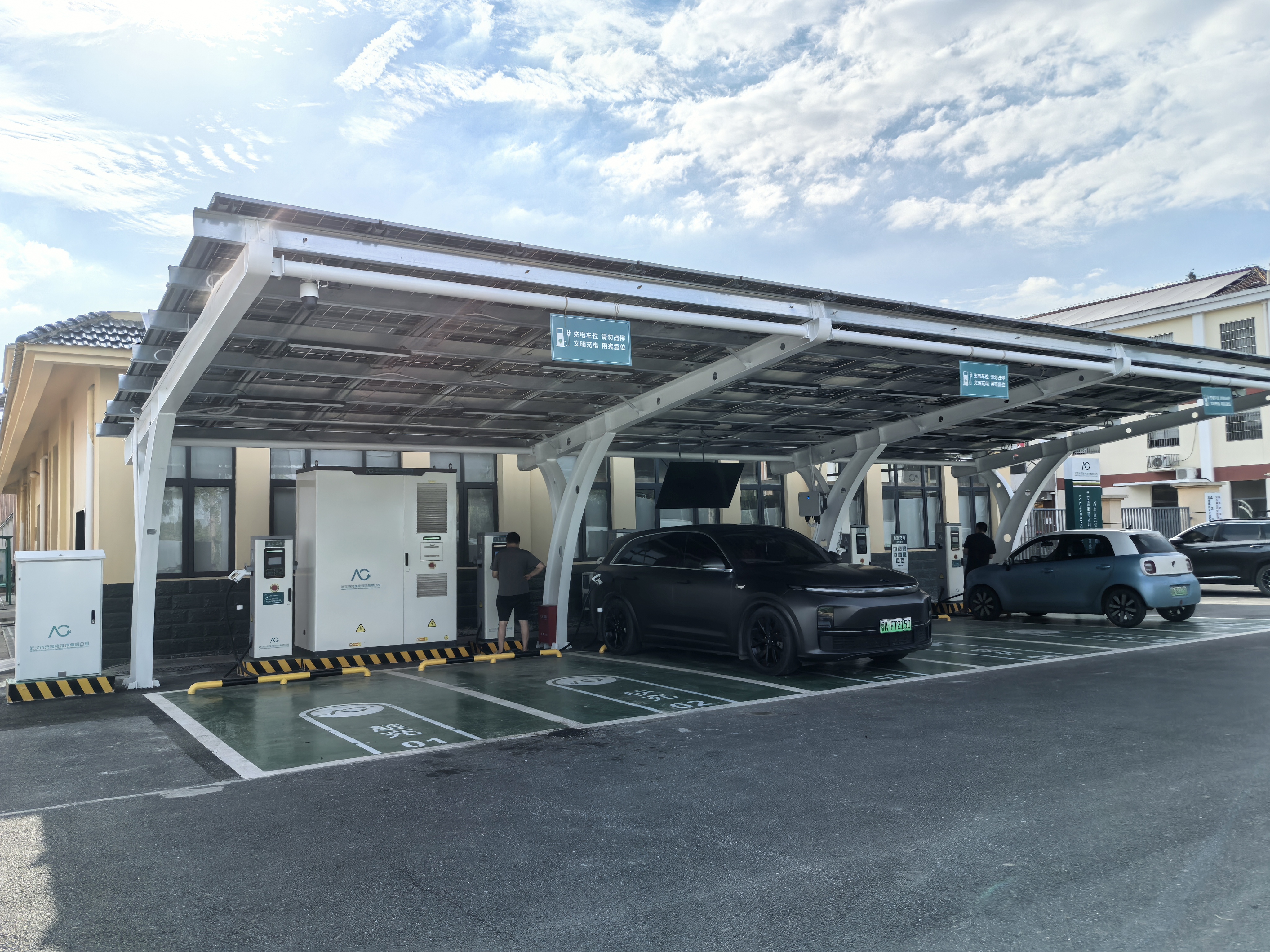

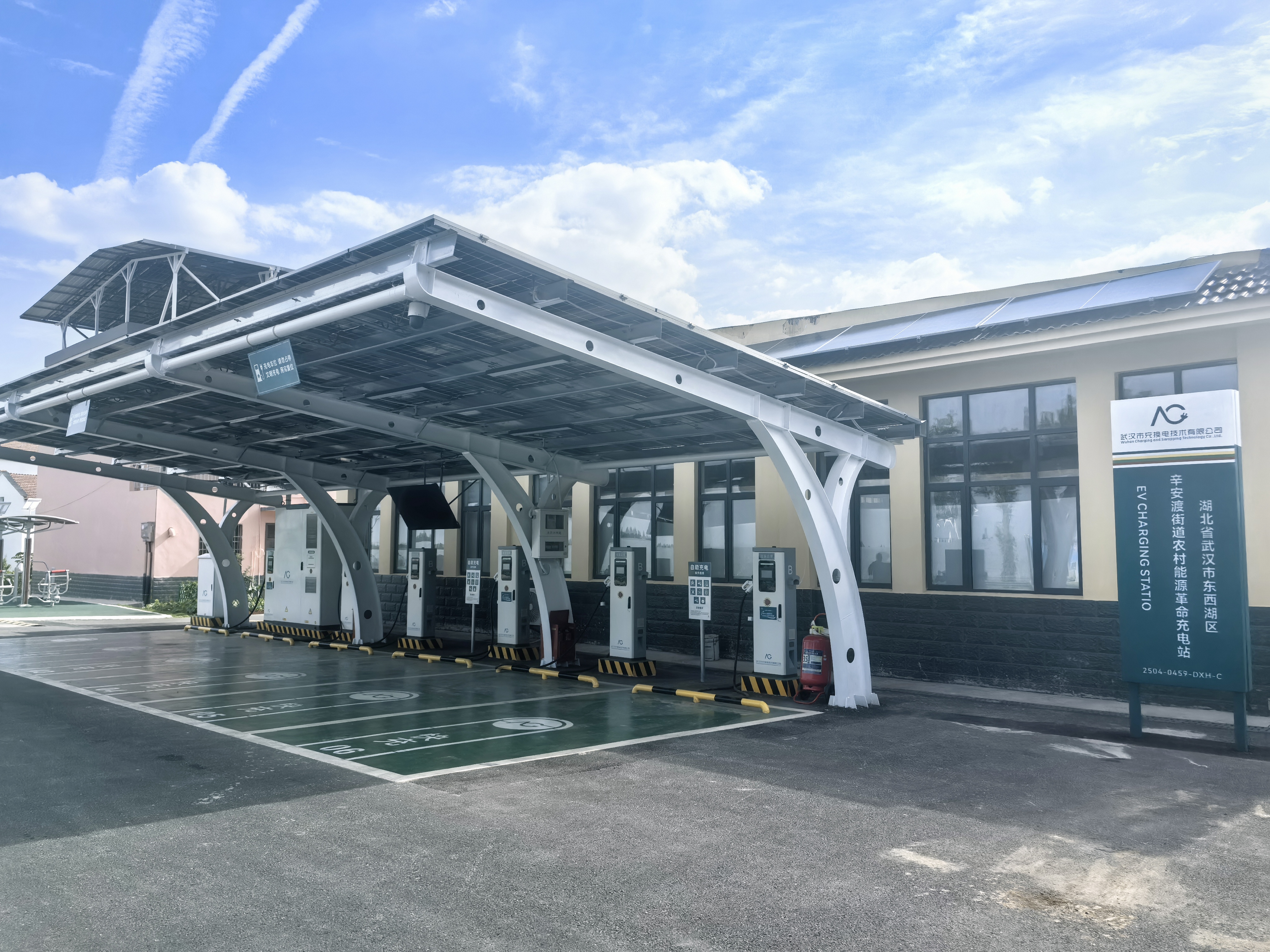

Rural Energy Revolution Demonstration Project at Yuqian and Danyi Villages, Dongxihu District, Wuhan.

What Is a Zero‑Capacity‑Expansion Integrated Storage‑Charging Unit? What Are Its Core Features?

In simple terms, a zero‑capacity‑expansion integrated storage‑charging unit is an intelligent device that highly integrates an energy storage system (battery) and a charging pile (charger) both physically and logically. Using a model equipped with a 125kW PCS (Power Conversion System), a 203.5kWh battery, and a 480kW DCDC charging module as an example, let us see how it works its magic.

To understand how it works, picture the grid as a water supply pipe, the charging pile as a faucet, and the NEV’s battery as the bucket to be filled.

125kW PCS (water inlet pipe):

This represents the device’s power demand on the grid—it only requires the grid to provide 125kW. Think of it as a moderately sized water pipe that, day or night, steadily feeds water into the device at a smooth, grid‑friendly flow, never straining the network.

203.5kWh battery (reservoir):

This is the built‑in energy reservoir. When no vehicle is charging, or when the grid is in a low‑demand (low‑tariff) period, the 125kW power is continuously stored into this 203.5kWh battery.

480kW DCDC module (extra‑large faucet):

When an NEV supporting high‑voltage fast charging pulls in and needs an urgent top‑up, this extra‑large faucet opens instantly. At that moment, instead of relying solely on the grid’s small pipe, it directly opens the reservoir gate, releasing stored energy into the vehicle’s battery at a staggering rate of up to 480kW.

Summary of Core Features

The defining characteristic of this design is trickle‑charge storage, release for instant charging. It completely severs the direct, hard draw between an ultra‑high‑power charger and the grid, shifting the sudden, massive load to the built‑in storage battery. Thus, without changing the original grid transformer capacity, it dramatically upgrades charging service capability.

Running the Numbers: The Product’s Core Advantages

The industry sees this integrated storage‑charging unit as a key breakthrough for the future because, in terms of economy, efficiency, and environmental friendliness, it wins on four fronts.

The Economic Case — Directly Saving Six‑Figure Capacity‑Expansion and Construction Time

Traditional charging station construction, once transformer capacity falls short, requires road excavation, laying new cables, and purchasing new transformers—a process that routinely costs hundreds of thousands or even millions of yuan, with extremely cumbersome approvals. Zero‑capacity‑expansion, as the name suggests, simply uses an existing 125kW utility power connection, eliminating the exorbitant capacity‑expansion cost and slashing station construction time from months to days—truly plug‑and‑play, flexibly deployable.

The Revenue Case — Using Peak‑Valley Tariff Spreads to Auto‑Earn

This is more than a charging pile; it is a micro energy storage power station. During the night‑time low‑demand period, when grid load is low and tariffs are cheapest, namely valley power, it quietly uses 125kW to fully charge its 203.5kWh battery. By day, during peak demand when tariffs are highest, it prioritizes discharging the cheap energy stored overnight when vehicles come to charge. This buy low, sell high peak‑valley arbitrage model significantly shortens the station operator’s return on investment (ROI) cycle.

The Efficiency Case — DC Bus Architecture, Reducing Energy Loss

This product adopts advanced DCDC (DC‑to‑DC) charging modules. Traditional charging piles must convert the grid’s alternating current (AC) into direct current (DC) to charge a vehicle, incurring energy losses along the way. The integrated unit’s battery is itself DC; via the DC bus it charges the vehicle directly through the DCDC module, removing unnecessary AC/DC conversion stages for higher conversion efficiency and lower heat generation.

The Grid Case — An Extremely Grid‑Friendly Pressure Relief Valve

What the grid fears most is volatile, pulsed power draw. Multiple vehicles fast‑charging at 480kW simultaneously would be a disastrous shock to the local grid. The integrated storage‑charging unit smooths the wildly fluctuating charging load into a steady 125kW base load. Rather than adding chaos, it provides dynamic capacity expansion and peak shaving / valley filling—making it the grid’s most welcome good neighbor.

Striking Precisely: Its Best Use Scenarios

Given the above characteristics, this 125kW‑input / 480kW‑output integrated storage‑charging unit is like a special‑forces unit—ideally suited for pain‑point areas where traditional solutions fall short.

• High‑density urban office clusters and zero‑carbon flexible parks: In modern CBDs or large tech parks, central air conditioning and elevators already consume most transformer capacity. Deploying an integrated storage‑charging unit here, leveraging a small amount of the office building’s existing spare capacity, delivers ultra‑fast charging for executives’ and employees’ vehicles without adding pressure to the building’s transformer.

• Older residential communities and dense housing areas: Grids in these areas were often built decades ago, and even installing ordinary slow chargers is hampered by insufficient capacity. The integrated unit can connect directly to the community’s existing idle distribution network, providing residents with a fast‑charging public node.

• Highway service areas (areas with pronounced tidal effects): During holidays, service areas are overwhelmed with not a charger to be found demand, yet utilization is extremely low the rest of the time. Large‑scale transformer capacity expansion here is both prohibitively expensive and highly wasteful. The integrated unit can store energy slowly during off‑peak periods and release burst capacity during holidays, perfectly handling tidal charging peaks.

• Highway freight corridors and heavy‑truck depots: Logistics vehicles and heavy trucks are extremely time‑sensitive and require high‑power fast charging. Yet remote highway routes often lack high‑grade, high‑voltage grids. The integrated unit can use the relatively weak local agricultural or standard distribution network along the route to build a super depot that meets heavy‑truck charging needs.

Looking Ahead

If we take the long view, the 125kW‑plus‑203.5kWh integrated storage‑charging unit is merely the first ripple in the great wave of energy transformation.

First, it is the ideal testbed for V2G (Vehicle‑to‑Grid).

Future integrated storage‑charging units will no longer be one‑way power deliverers; they will become intelligent hubs connecting NEVs and the grid. When the grid faces extreme peak pressure, the unit can not only discharge its own stored energy but also guide parked NEVs to feed surplus power back into the grid—turning cars from pure consumers into mobile power banks, with owners earning revenue in the process.

Second, advances in underlying technology will push it further.

With the development of power electronics—such as the widespread adoption of silicon carbide (SiC) devices and the future integration of Solid‑State Transformer (SST) technology—integrated storage‑charging units will shrink further in size while reaching astonishing levels of energy density and conversion efficiency. Future devices may be no larger than a standard parking chock, yet harbor megawatt‑level throughput capability.

Finally, it will become the nerve endings of Virtual Power Plants (VPPs).

Thousands of integrated storage‑charging units scattered across the city will be connected via 5G and a cloud‑based brain into an invisible super power plant. They will respond in real time to the dispatch commands of the state grid, switching between charging and discharging within milliseconds, becoming a core flexible resource for ensuring society‑wide power security and integrating vast amounts of wind, solar, and other green energy sources.

Breaking free from dependence on thick cables and massive transformers, the zero‑capacity‑expansion integrated storage‑charging unit uses a minimal effort to achieve maximum effect—resolving the absolute contradiction between ultra‑fast charging and grid capacity. It is not just a clever industrial product; it is a solid yet light stepping stone on our path toward a zero‑carbon society and a new‑type power system.
