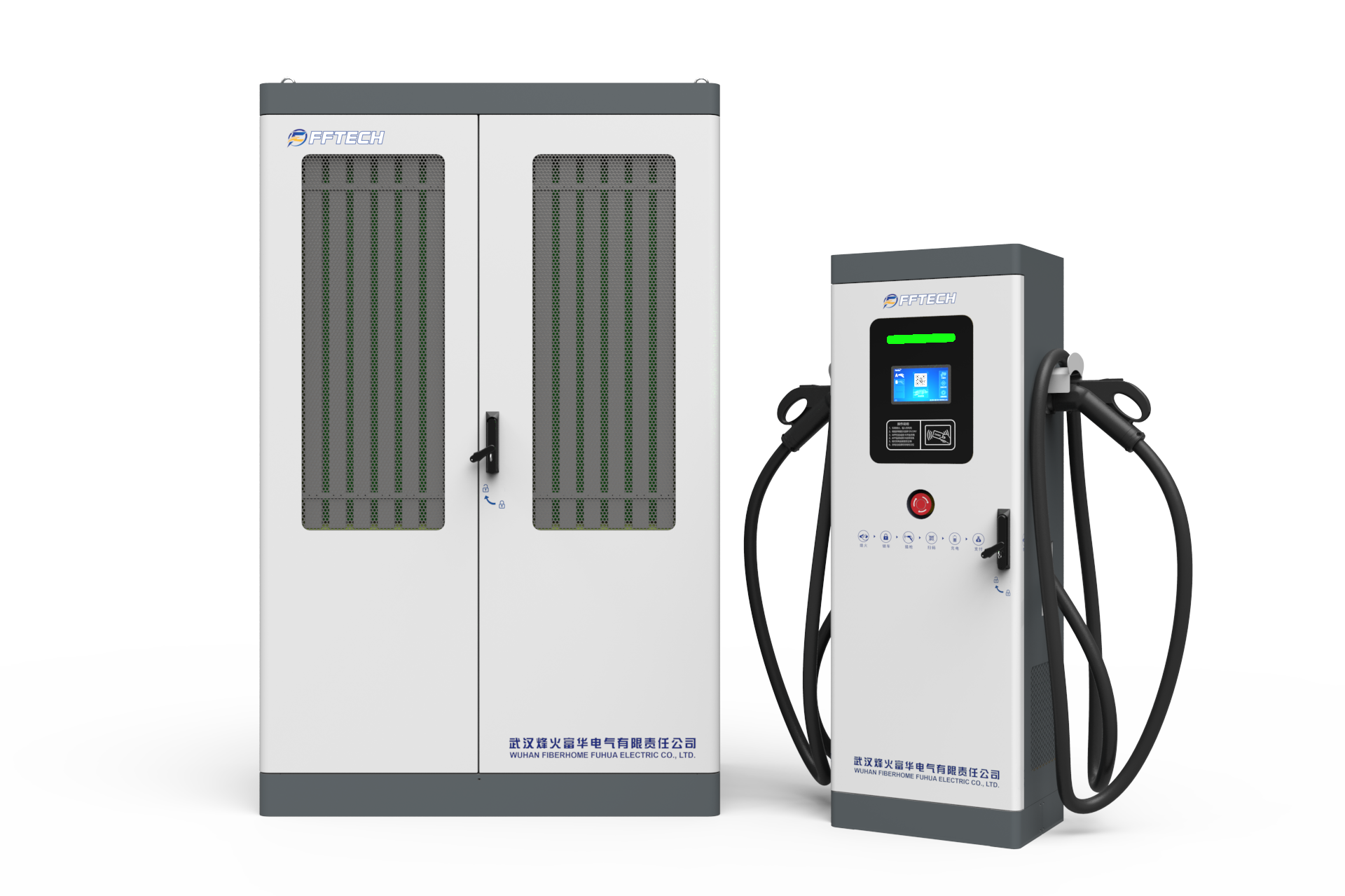

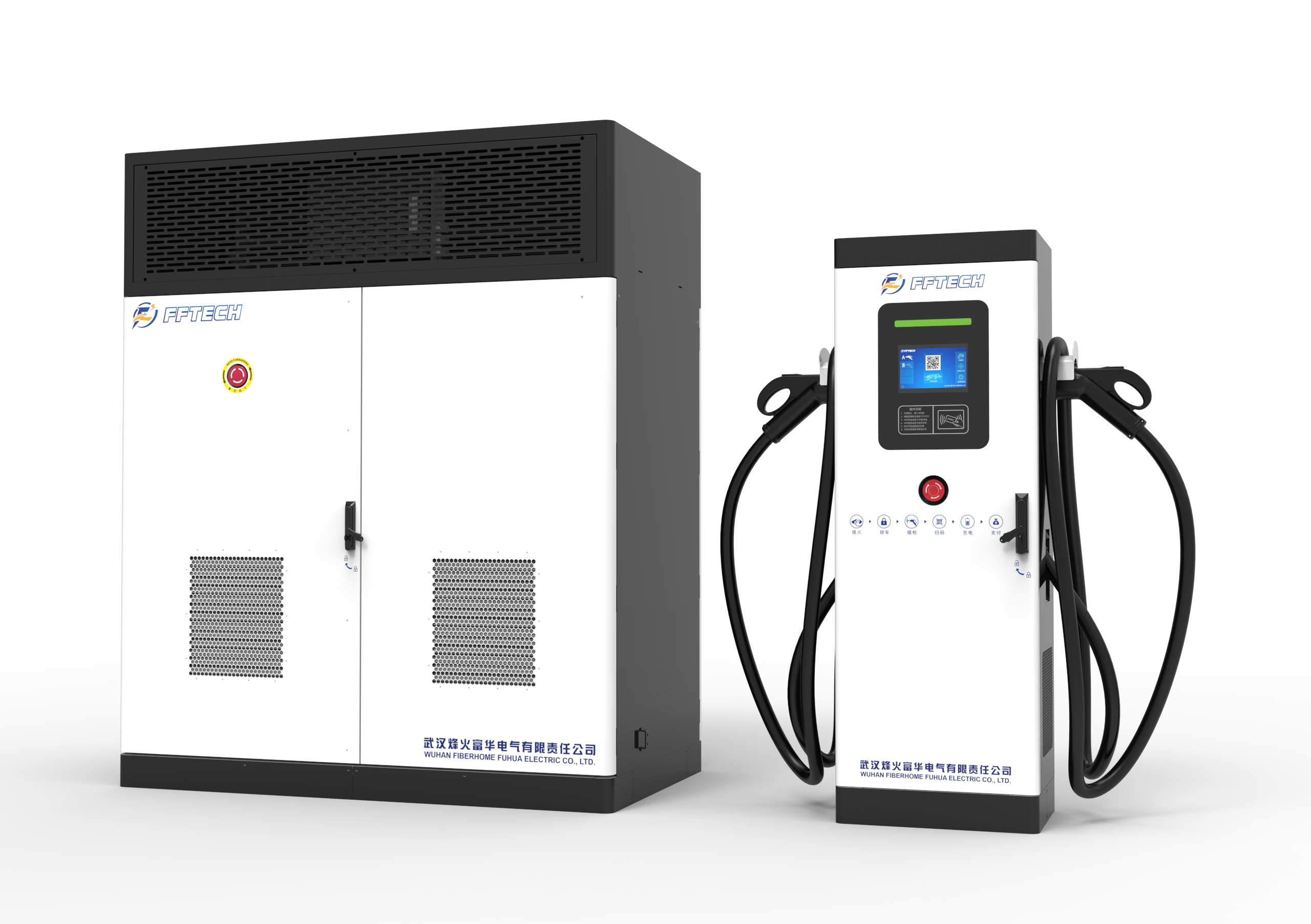

This series of products adopts modular design, which can meet the customized requirements of customers. The charging pile is used in conjunction with the box transformer to provide fast charging solutions for pure electric vehicles, and the terminals can be output in parallel according to the actual needs of vehicles. This series is mainly used in centralized charging facilities.
ADVANTAGES
Low cost, small footprint, easy installation
Intelligent power distribution, improve system utilisation
All-round protection: over-voltage, over-current, over-temperature, short-circuit, etc
Support remote monitoring and operation
KEY PARAMETER
Titles | Distributed DC Charger |
|---|
Category | Fast charging terminal | Power cabinet |
|---|
Model No. | FH-ED - 250kW | FH-EK-240kW | FH-EK-320kW | FH-EK-360kW | FH-EK-400kW | FH-EK-480kW | FH-EK-600kW | FH-EK-720kW | FH-EK-800kW |
|---|
Input Voltage | 220VAC±15% | 380VAC±15% |
|---|
150-1000VDC |
Input Current | DC: 0-300A | 392A | 522A | 588A | 653A | 783A | 979A | 1175A | 1306A |
|---|
Power Factor | / | ≥0.99 50% to full load |
|---|
Grid Connection type | AC: L, N, PE | 3P+N+PE |
|---|
DC: DC+, DC- |
Output Power | 250kW | 240kW | 320kW | 360kW | 400kW | 480kW | 600kW | 720kW | 800kW |
|---|
Output Voltage | DC150~1000V |
|---|
Operating efficiency | ≥99% | ≥95% |
|---|
Ingress Protection Rating | IP54 |
|---|
Cable Length | 5 meters (optional) | / |
|---|
Display | High-definition LCD screen | / |
|---|
Operating Temperature | -20~+50°C normal output; 50~75°C derating output |
|---|
MTBF | >8760h |
|---|
Communication Protocol | 4G/Ethernet/OCPP (optional) |
|---|
Startup Method | Local start/card start/plug and charge/App start(optional) |
|---|
Dimensions | 450*280*1550mm | 750*750*1900mm | 1200*750*1900mm | 1400*750*2000mm |
|---|
Safety Standards | Chinese standards: GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002 European standards: IEC 62196, IEC61851 |
|---|
